| Brand Name: | Solarose |
| Model Number: | Stack 5+20.48KWH |
| MOQ: | 10 |
| Price: | Negotiable |
| Delivery Time: | 35 days |

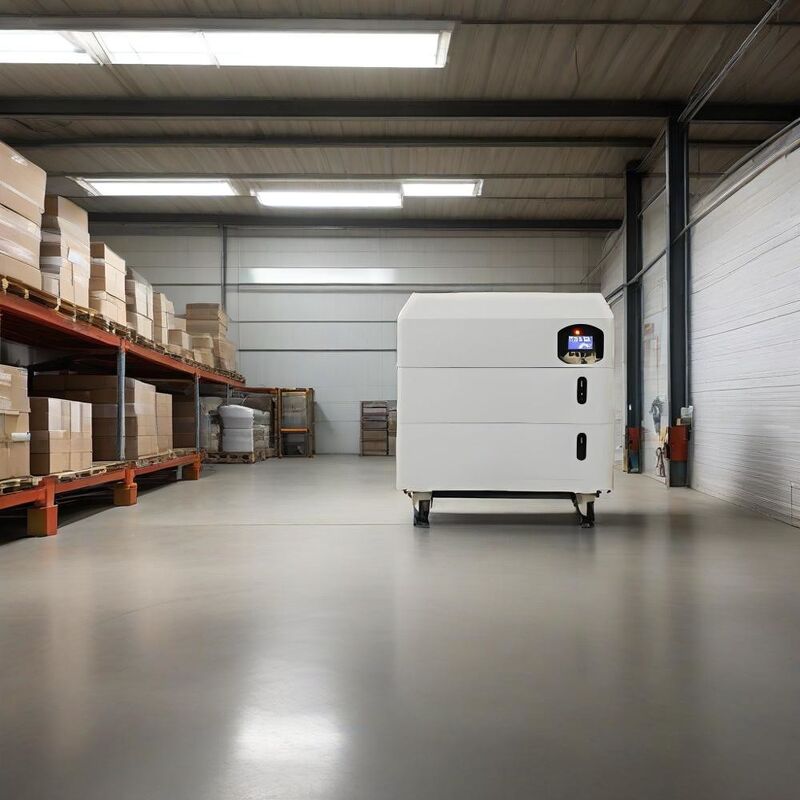

Stacking All In One 5KW 20.48KWH LiFePO4 Solar Power System With 5KW Inverter For Home & Backup
Product description:
This Stacking All-In-One Solar Power System is a premium 20.48kWh energy storage solution integrating a 5KW pure sine wave inverter with a 51.2V 400Ah LiFePO4 battery array. Featuring a high-efficiency MPPT controller (120-450V DC), it maximizes solar harvesting for home backup and off-grid living.
The modular stackable design ensures easy expansion and rapid installation for commercial and residential EPC projects.
Massive 20.48KWH LiFePO4 Storage: Equipped with high-capacity 51.2V 400Ah LiFePO4 cells, this system provides extended power for large-scale needs. The premium Lithium Iron Phosphate technology ensures superior thermal stability and a long-lasting lifespan for years of daily cycling.
Integrated 5KW Pure Sine Wave Inverter: The powerful 5KW inverter delivers stable and efficient AC output, capable of running heavy-duty appliances, sensitive office electronics, and critical medical equipment without the risk of power fluctuations.
Modular & Stackable Scaling: Our unique stacking design allows for effortless energy expansion. This modular approach enables users to start with a base capacity and scale their storage as their energy demands grow, making it a future-proof investment.
High-Efficiency MPPT Solar Charging: The system supports up to 5KW solar input with a wide 120-450V DC range. The integrated MPPT controller maximizes energy harvest from your PV array, ensuring fast and efficient recharging even in low-light conditions.
10ms Seamless UPS Function: Protect your data and appliances with the 10ms fast-switching UPS function. In the event of a grid failure, the station transitions to battery power instantly, guaranteeing an uninterrupted power supply for critical loads.
Smart BMS & Communication Interface: The advanced Intelligent BMS monitors every cell for overcharge and short-circuit protection. With RS485 and CAN communication protocols, the system integrates easily into smart home setups and allows for remote monitoring.
Technical parameter
| Parameter | Specification |
| Battery Capacity | 20.48KWh (51.2V 400Ah) LiFePO4 Battery |
| Inverter Power | 5KW Pure Sine Wave Output |
| PV Input Power | Max 5KW MPPT Solar Charging |
| PV Voltage Range | 120 - 450V DC |
| Output Voltage | 230Vac ±5%, 50Hz/60Hz |
| Charge & Discharge Current | 100A (Max Discharge: 110A, Peak: 150A) |
| Communication | RS485 / CAN, RJ45 Port |
| UPS Switching Time | Fast Switching for Seamless Backup |
Our 5KW 20.48KWH Stacking System is the premier choice for:
Whole-Home Backup: Ensuring lights, HVAC systems, and kitchens remain operational during long-term outages.
Business & Commercial Backup: Providing reliable energy for server rooms, retail shops, and clinics.
Off-Grid Living: Acting as the primary energy hub for sustainable, independent lifestyles in remote locations.
Distributed Energy Projects: Serving as a high-capacity unit for smart-grid and solar-integrated infrastructures.
Product Details:
Factory workshop:
